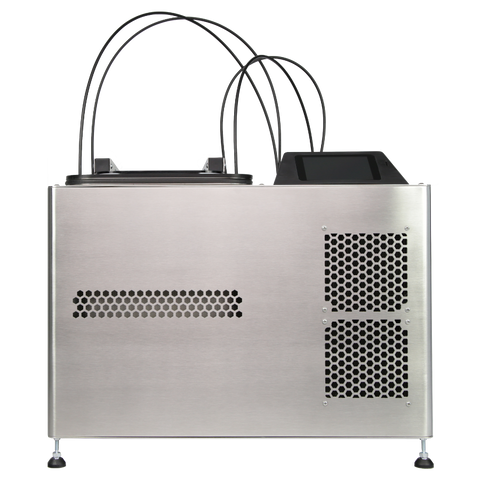

Vapor Phase One front view
Vapor Phase One front view
Vapor Phase One front view with open lid
Vapor Phase One side view with open lid
Vapor Phase One back view

Vapor Phase One

4.749,00€
(excluding 19% VAT)
5.651,31€
(including 19% VAT)

Free shipping. Products are sold to limited countries, see shipping details.

Products will be shipped in March 2022.

Vapor Phase One

The Vapor Phase One offers development engineers as well as small to medium sized prototyping service providers one of the most gentle soldering processes in the industry. In contrast to infrared or convection processes, assemblies with high thermal mass, fine pitch structures or temperature-sensitive components can be processed without any problems.

Features

Fast temperature profiles

The design of Vapor Phase One allows the user to run fast temperature profiles using a height-adjustable PCB lift.

Custom soldering profiles

The Vapor Phase One can import individual soldering profiles via an SD card. Based on these profiles, heating power and lift position are adapted to different solder pastes and PCB technologies.

Quick Cool

This feature shortens the process time and ensures minimal loss of Galden® when the board is removed

Anti Condensation

With the vapor phase technology, the soldered assembly is generally covered with Galden® residues. Our assembly is kept at a temperature of 120 °C after the soldering process, thus leaving hardly any residues.

Lifting lid

The lid to the process chamber lifts automatically to simplify the insertion and removal of PCBs. This also helps to preserve the heat transfer medium.

Viewing window

In addition to a screen that displays real-time temperature data, the Vapor Phase One features a viewing window with internal lighting that allows you to see into the process chamber.

Safety

The Vapor Phase One has a variety of safety mechanisms implemented in both software and hardware to ensure a secure usage and soldering process.

Open Source Hardware

We published the source code of the firmware as well as schematics and construction files in our GitHub repository PCB-Arts/vaporphaseone.

Specifications

Dimensions 495 x 650 x 320 mm
Maximum soldering area 200 x 185 mm
Power consumption max. 1100 W
Voltage 115 / 230 VAC (60 / 50 Hz)
Ambient temperature +15 °C ... +35 °C
Geographical altitude max. 2000 m (above mean sea level)
Weight 22 kg
Enclosure Stainless steel
Cooling Closed water cooling system with 4x 120 mm fans
Tested heat-transfer media Galden LS 230, XS 235, and HS 240
Volume of Galden 500 - 1000 ml
Volume of Galden used per cycle 0.49 ml
Data interface SD card
Display 4-inch capacitive touchscreen with 800 x 480 pixels

Downloads

Firmware Releases User Manuals & Safety Data Sheets.zip VaporPhaseOne-Specifications_EN-v1.0.pdf VaporPhaseOne-3D_Files-rev1.6.pdf solder-profiles.zip

Shipping details

This product is sold to European countries excluding Belgium, Luxembourg, The Netherlands, Slovenia, Croatia, Serbia, Bosnia and Herzegovina, North Macedonia and Montenegro. You can buy the Vapor Phase One from one of the following distributors:

  • PrintTec (for Belgium, Luxembourg and The Netherlands)
  • TivTec (for Slovenia, Croatia, Serbia, Bosnia and Herzegovina, North Macedonia and Montenegro)
  • We are working on a solution for North American customers.
