Helium
Helium
Helium

Helium

1.960,00€
(excluding VAT)
2.332,40€
(including 19% VAT. May differ in your country. Taxes are calculated at checkout)
9 products are in stock.

Preorder now - Delivery after 06.06.2025

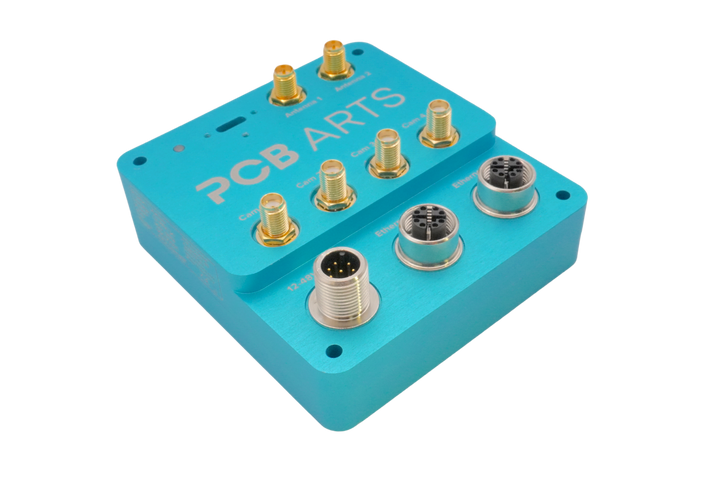

Helium - A super small Edge AI Computer based on NVIDIA Jetson

  • NVIDIA® Jetson™ Orin Nano / NX with Super Mode: up to 157 TOPs AI computing power
  • Camera interfaces: 4x GMSL2 with up to 20 Gbit/s
  • Industry-standard connectivity: 2x Gigabit Ethernet (M12), 1x USB-C 3.2 (10Gbit/s)
  • Robust design: IP67 protection class, waterproof and dustproof, shock-resistant
  • Choice of connectivity: WiFi, GPS, 4G or 5G

Attention: The helium needs a dedicated cooling solution, either a active cooling or a passive custom one. It could also be mounted on a metal plate, which act as a heatsink.

Purchasing this helium, you'll receive a sample-unit, after that it will have a MOQ of 25 pcs. Please contact mail@pcb-arts.com for exact pricing at these quantities.

Technical specifications

Supported NVIDIA SOMs Jetson Orin Nano oder NX
Running Software JetPack 6.2
Power Supply 12V - 48V DC In
Standard Interfaces 4x GMSL2 (MAX96724), 1x USB-C USB 3.2 (10Gbit/s, Screw terminal), 2x Gigabit Ethernet Ports (M12)
Integrated features 4x Opto Isolated IO's, IMU: ICM-42670-P, Crypto-Chip: ATSHA204A, external RTC
Storage 128GB
Optional Interfaces (not for samples) 256 GB internal SSD, WiFi, 4G, 5G
Debug header over USB-C, adapter available
Display output over USB-C, adapter available
IP Class IP67
Certifications CE, EMC, RoHS
Voltage 12V - 48V DC In
Power consumption max. 80 W
Ambient temperature -40°C ... + 85°C (integrated heater)
Humidity Not condensing
Cooling Passive cooling: can be adapted by yourself or by PCB Arts
Active cooling: with DIN rail option or wall mount
Weight 350 gramms
Housing Light blue eloxated aluminum
Installation optional, DIN-Rail or Wall mount
Dimensions 85 mm x 90 mm x 27 mm
Height +18 mm (with active cooling solution)
Temperature range -40°C ... + 85°C (integrated heater)

Supported NVIDIA Jetson Boards

Jetson Orin Nano Jetson Orin NX
AI Performance 20/40 TOPS 70/100 TOPS
GPU 1024-core NVIDIA Ampere GPU with 32 Tensor Cores 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
CPU 6-core ARM® Cortex® A78AE v8.2 64-bit CPU 6-core / 8-core Arm® Cortex® A78AE v8.2 64-bit CPU 1,5 MB / 2MB L2 + 4 MB L3
RAM 8 GB 128-bit LPDDR5 8 GB 128-bit LPDDR5 / 16 GB 128-bit LPDDR5
Power consumption 7W - 25W 10W - 40W

Legal notice

European Union

The low band 5.15 -5.35 GHz is for indoor use only.

This equipment complies with the essential requirements of the European Union directive 2014/53/EU. See Statements of European Union Compliance. European Union Declarations of Conformity.

IMPORTANT: Helium is for commercial use only. With the purchase of the Helium, you automatically accept the EULA from NVIDIA.


Scope of delivery

  • Helium, NVIDIA Jetson Orin NX 16GB, 128GB SSD with 4x GMSL with latest version of NVIDIA® JetPack SDK pre-installed
  • Print version of quick guide and CE declaration of conformity
  • Active cooling solution

Downloads

Helium datasheet

Logistic Information

HS-Code: 84714900
