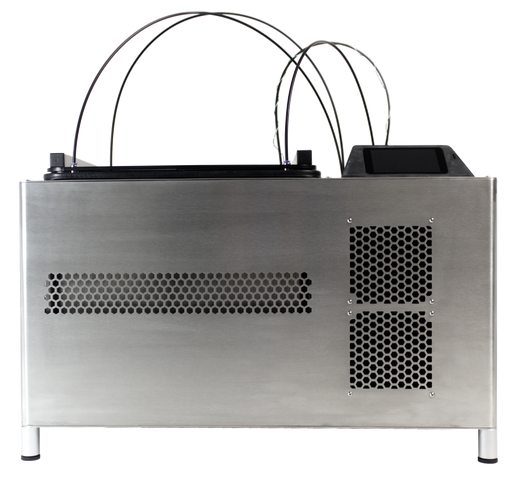

Vapor Phase Two

The Vapor Phase Two offers one of the most gentle soldering processes for prototyping or small sized batch production. In contrast to infrared or convection processes, assemblies with high thermal mass, fine pitch structures or temperature-sensitive components can be processed without any problems.

Features

Fast temperature profiles

The design of Vapor Phase Two allows the user to run fast temperature profiles using a height-adjustable PCB lift.

Custom soldering profiles

The Vapor Phase Two can import individual soldering profiles via an SD card. Based on these profiles, heating power and lift position are adapted to different solder pastes and PCB technologies.

Quick Cool

This feature shortens the process time and ensures minimal loss of Galden® when the board is removed.

Anti Condensation

With the vapor phase technology, the soldered assembly is generally covered with Galden® residues. Our assembly is kept at a temperature of 120 °C after the soldering process, thus leaving hardly any residues.

Lifting lid

The lid to the process chamber lifts automatically to simplify the insertion and removal of PCBs. This also helps to preserve the heat transfer medium.

Viewing window

In addition to a screen that displays real-time temperature data, the Vapor Phase One features a viewing window with internal lighting that allows you to see into the process chamber.

Safety

The Vapor Phase Two has a variety of safety mechanisms implemented in both software and hardware to ensure a secure usage and soldering process.



Specifications

Dimensions 627 x 650 x 407 mm
Maximum soldering area 300 x 335 mm; Height: 60mm
Power consumption max. 2200 W
Voltage 115 / 230 VAC (60 / 50 Hz)
Ambient temperature +15 °C ... +35 °C
Geographical altitude max. 2000 m (above mean sea level)
Weight 35 kg
Enclosure Stainless steel
Cooling Closed water cooling system with 6x 120 mm fans
Tested heat-transfer media Galden LS 230, XS 235, and HS 240
Volume of Galden 2kg
Data interface SD card
Display 4-inch capacitive touchscreen with 800 x 480 pixels


Shipping details

The Vapor Phase Two is sold directly by PCB Arts, except to the countries below. There we have good partners who take over the distribution:

  • PrintTec (for Belgium, Luxembourg and The Netherlands)
  • TivTec (for Slovenia, Croatia, Serbia, Bosnia and Herzegovina, North Macedonia and Montenegro)
  • P2JTechnology (for Czech Republic)
  • Microsolder (for Hungary)
  • Sodiflux (for France)
  • Interflux (for Norway, Sweden and Denmark)

Soldering Medium

To get started directly with the Vapor Phase Two, at least 2kg of Galden is required. Just add Galden LS230 to the shopping cart and we will ship everything together.
